series II title



TS-520/820 Series II sprockets

TEMPO 2020 sprockets

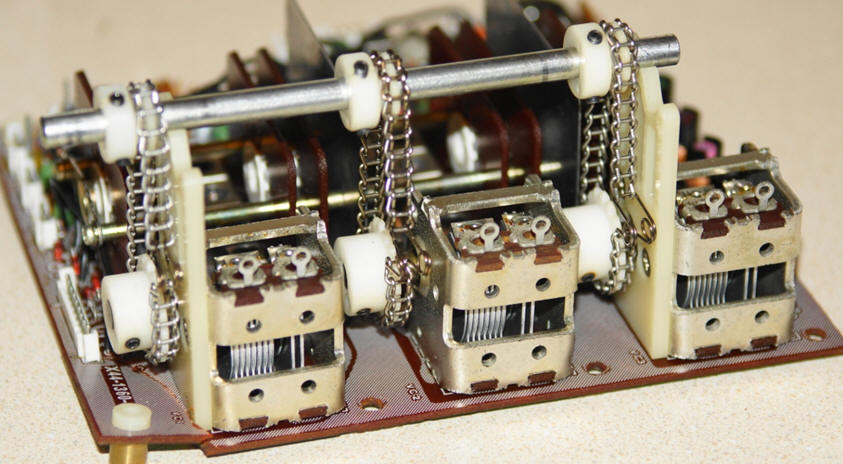

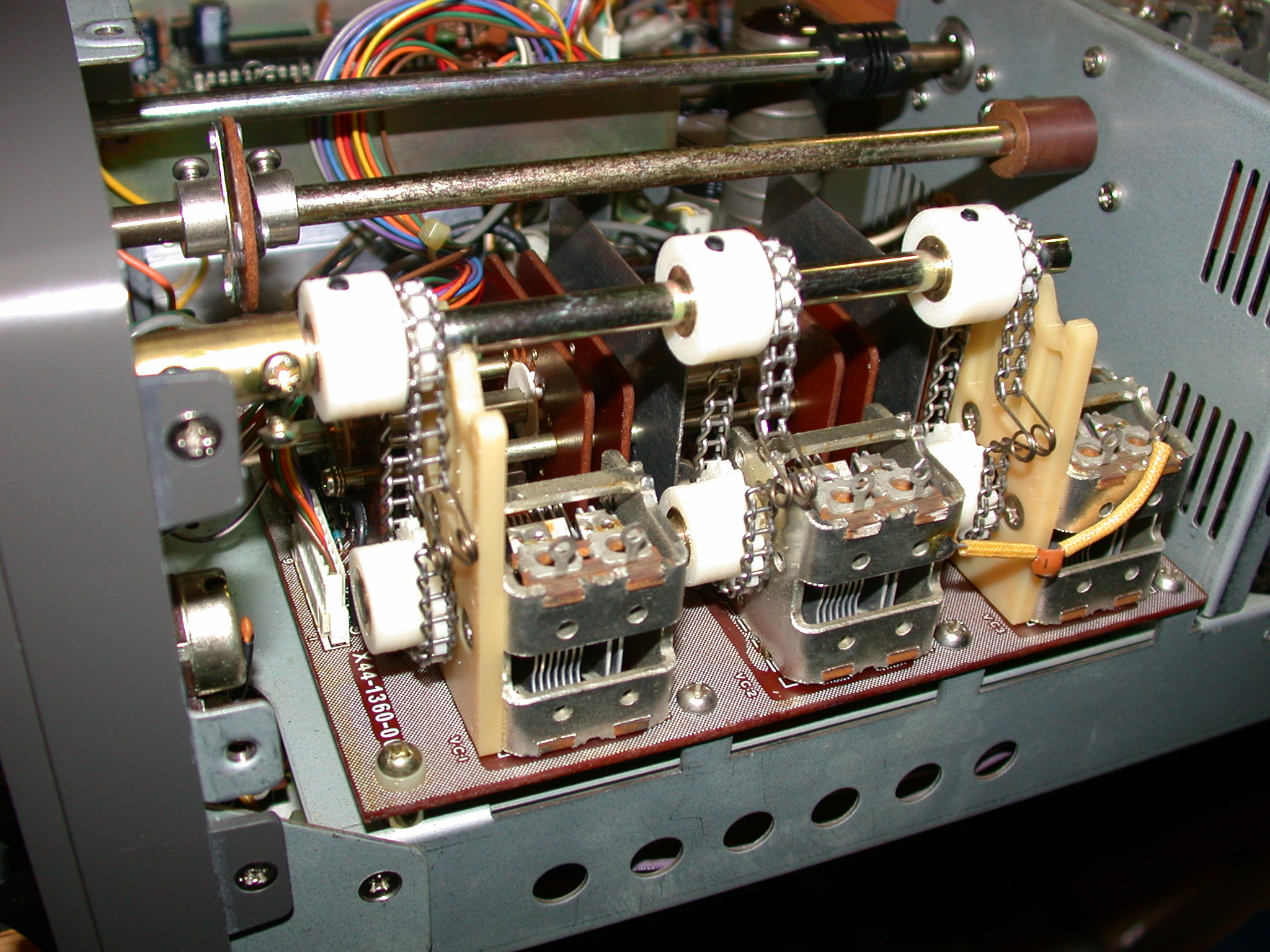

     830 coil pack board

Original TS-830 Coil Pack Board with large and small chain sprockets

X44-1360-00

The sprocket sets for the TS-520/820 Transceivers are different than the sprockets used on the 530/830

 series of Kenwood Hybrid Transceivers.   The Series II design of the 530/830 sprocket have a pressed in

brass hub that allows for improved mechanical mounting to the 6mm drive shaft and air capacitor shafts.

By lengthening the sprocket shape and inserting a brass hub for mounting, we now have an improved

Series II TS-530/830 replacement sprockets.   There were a few reported failures of my initial design

530/830  sprockets.   This improved design is an attempt to make the mounting process much stronger

and more reliable.   The original 520/820 series sprockets have a brass insert but the later 530/830

sprockets did not have that feature.  The 520/820 sprockets were mounted to a 6mm shaft with two

metric round  head JIS screws.   These screws require a special driver.  Each replacement Series II

sprocket uses a pair of more conventional 4-40  round head #0-phillips head screws or (optional) socket head

set screws.

  830 series ii sprock          830 series II sprockets

The left hand photo is of and original 830 top shaft sprocket on the left and a Series II version small 530/830 top shaft small sprocket on the right.

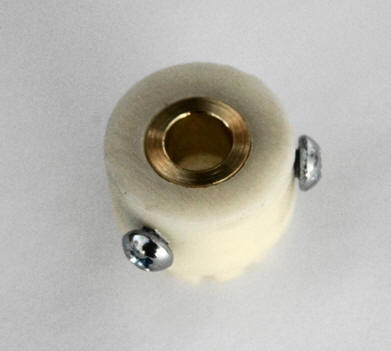

The picture on the right is of the new Series II sprocket showing the brass hub insert.

(AVAILABLE WITH PHILLIPS ROUND HEAD SCREWS OR SOCKET HEAD SET SCREWS)

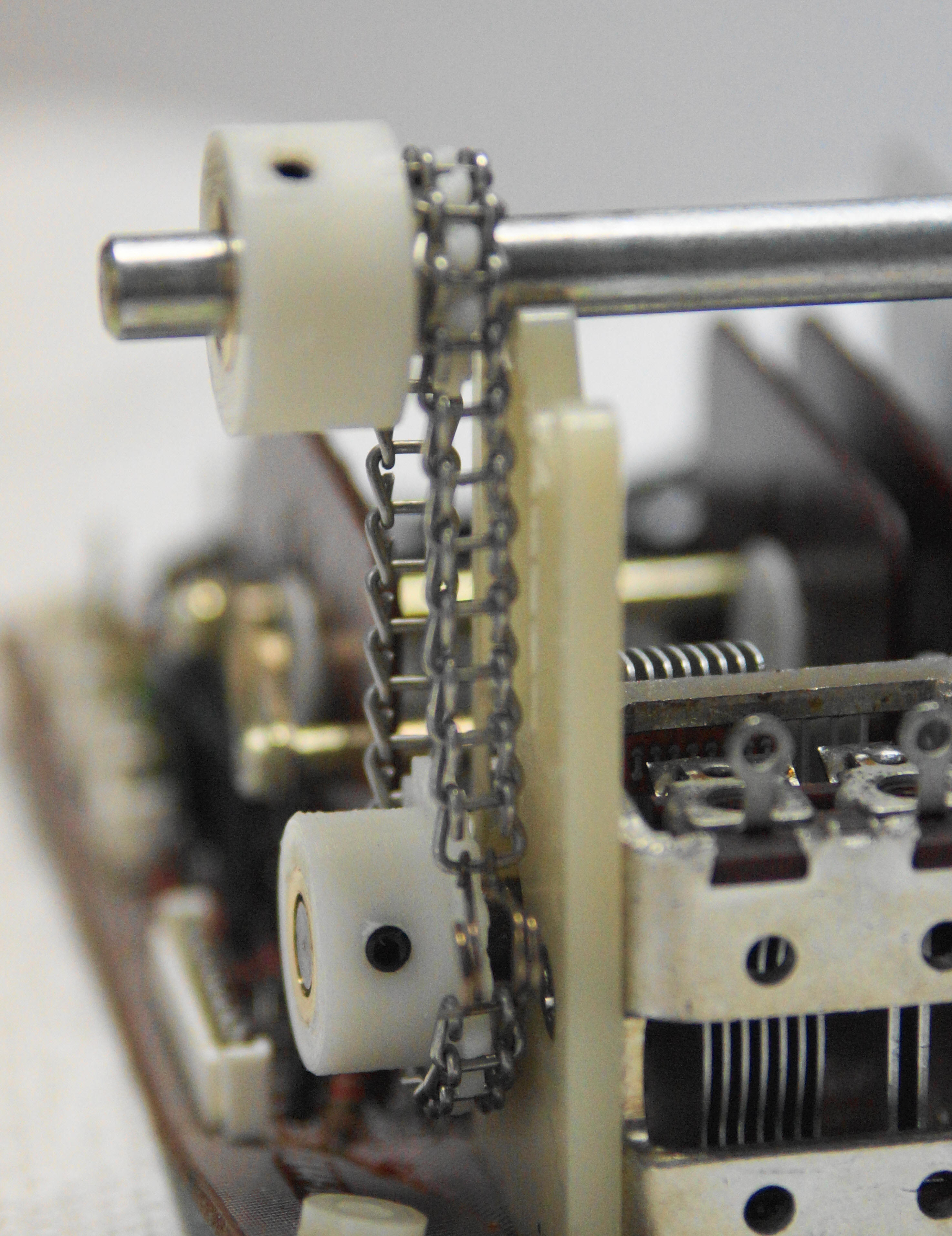

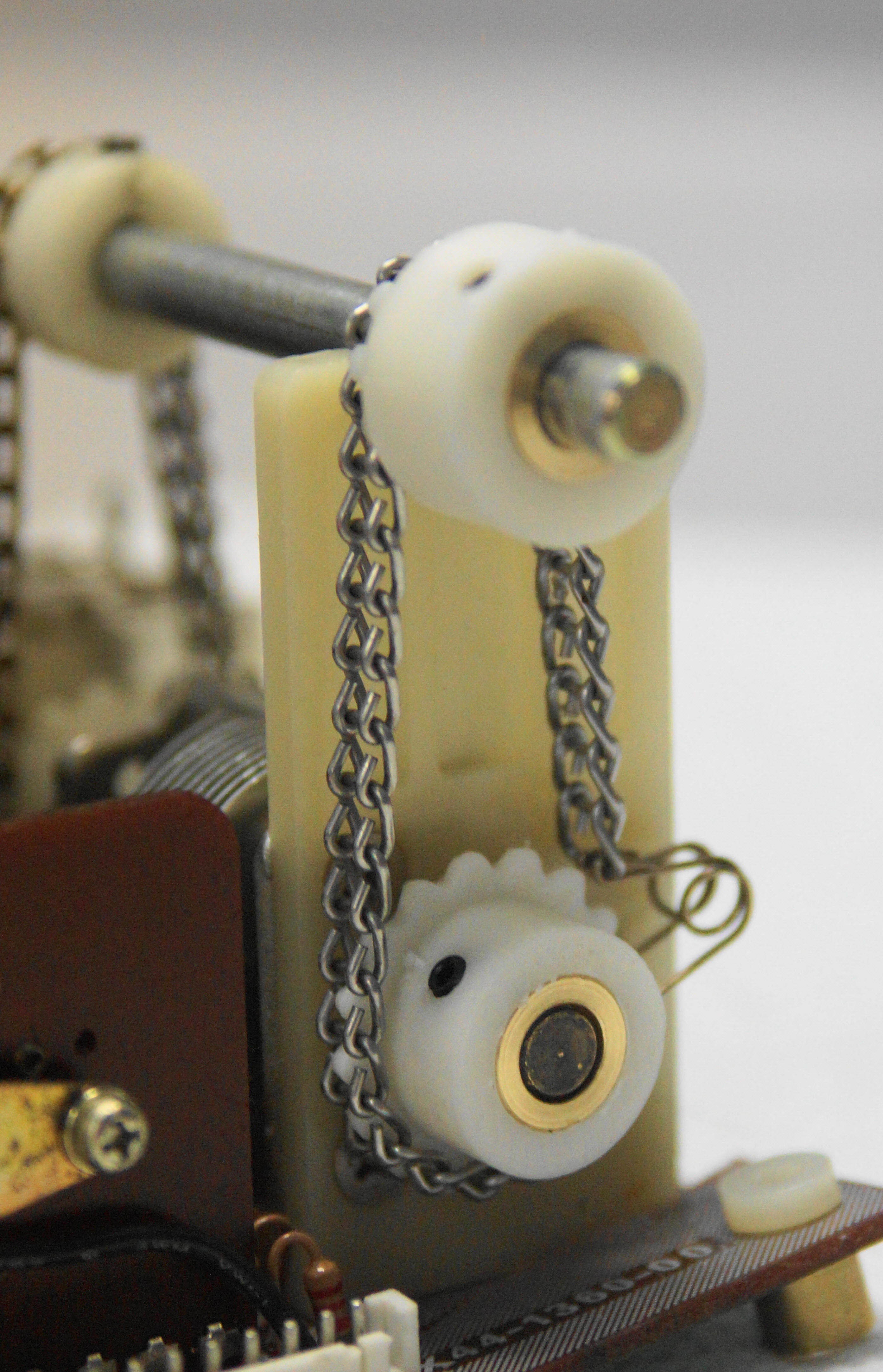

    830 series II a    830 series II on board

Pictures of the Series II sprockets on a TS-830 Coil Pack Board.   The Series II sprockets

have brass inserts with 4-40 set screws to more securely mount the sprockets to the

air capacitor shafts.  Series II Sprockets for the 520/820 series are also in the works.

Specifications (click here)



Click here,and see Pricing bottom of page
