replacement sprockets title

This page includes information and pictures of the Series II Kenwood replacement sprockets.

The Series II Kenwood Sprockets are available for the TS-530 and TS-830 series Transceivers

Coming soon Kenwood Series II Sprockets will be available for the TS-520 and TS-820 series Transceivers

Info. -  Series II Sprockets

Series II for the 530 and 830 Transceivers

IMPROVED SERIES II SPROCKETS ARE NOW AVAILABLE FOR THE TS-530 AND TS-830 (see pricing below)

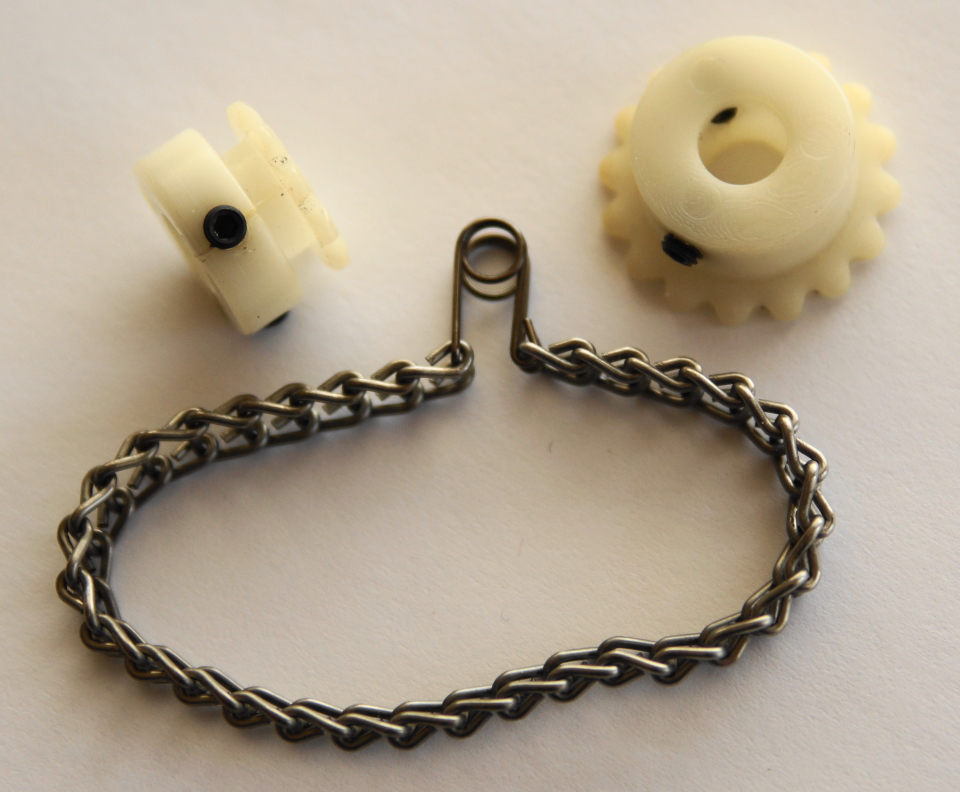

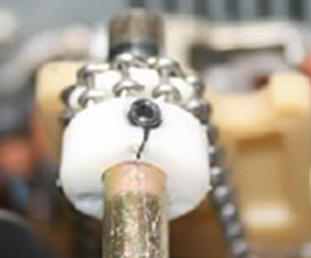

brokeken sprocket      sprocket housing      pair old sprockets

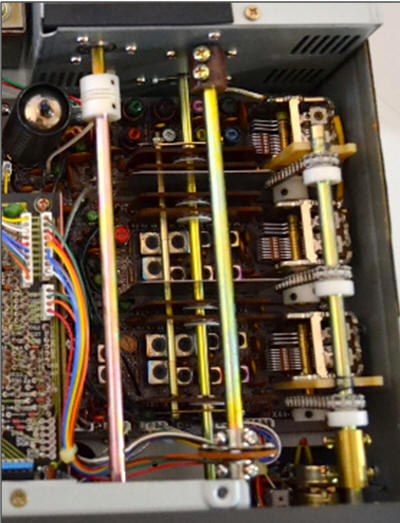

       It's not if it breaks, it's when it breaks.          Six sprockets installed in a Kenwood TS-830            Chain drive, both small and large sprockets

repair  Repair it or Replace it.  For about the price of the glue and a strap you can now purchase a new replacement sprocket set.

       It was recently brought to my attention that as the Kenwood Hybrid TS-530 and TS-830 Series Transceivers age, there continues to be a systemic failure of the small sprockets in the sprocket driven air capacitor drive mechanism.  Now I am manufacturing replacement sprockets.  The original (upper) small sprockets were manufactured with a hub wall of 0.200".  The new replacement sprocket hub wall has been increased to 0.250" to accept a 1/4 inch long 4-40 socket head set screw.  I could not resist the liberty of converting them from metric to English.  The new designed sprockets are made of a durable ABS material.  This hub depth on each side has been increased 0.050" over the original sprocket design, adding 0.100" to the diameter of the hub.  A combination of the nylon material and limited thread depth caused the original sprockets to crack and fail over time.  (See center picture above)  The lower larger matching 16 tooth sprockets are also being reproduced.   Three of the large and three small sprockets are used in each Hybrid Transceiver.

Replacement Kenwood Sprockets

Comments by Terry K9TW      and       Installation Comments by Craig W3CCR





                         sample sprockets  10 sprockets

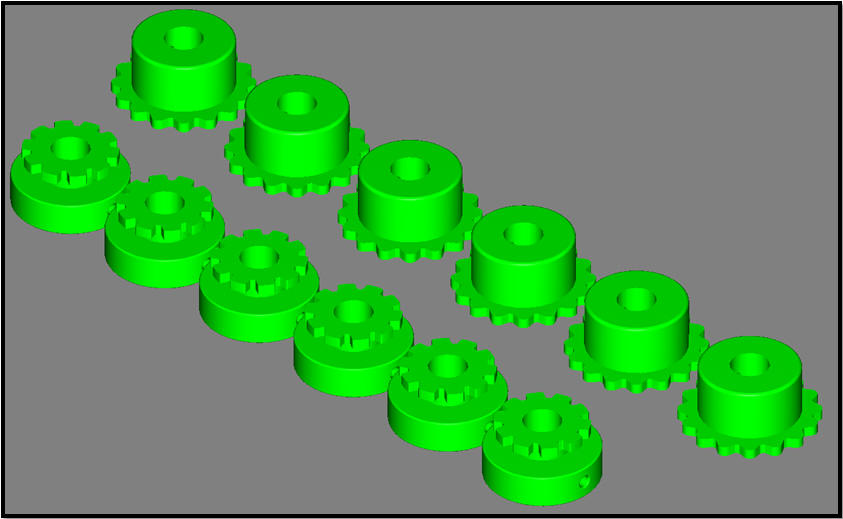

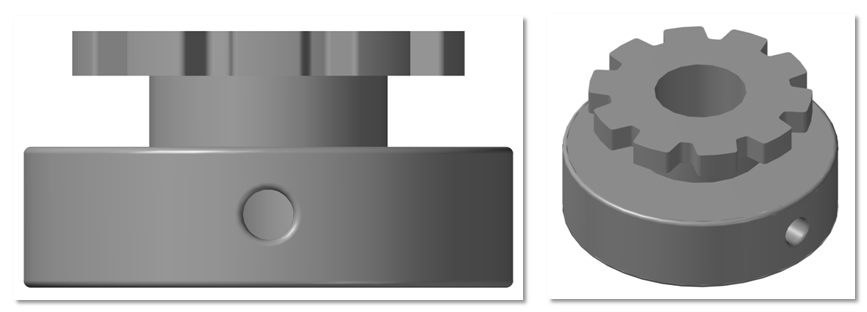

I reengineered a pair of old sprockets, creating solid models as shown above.

 new small sproc    new large sproc    two sprockets

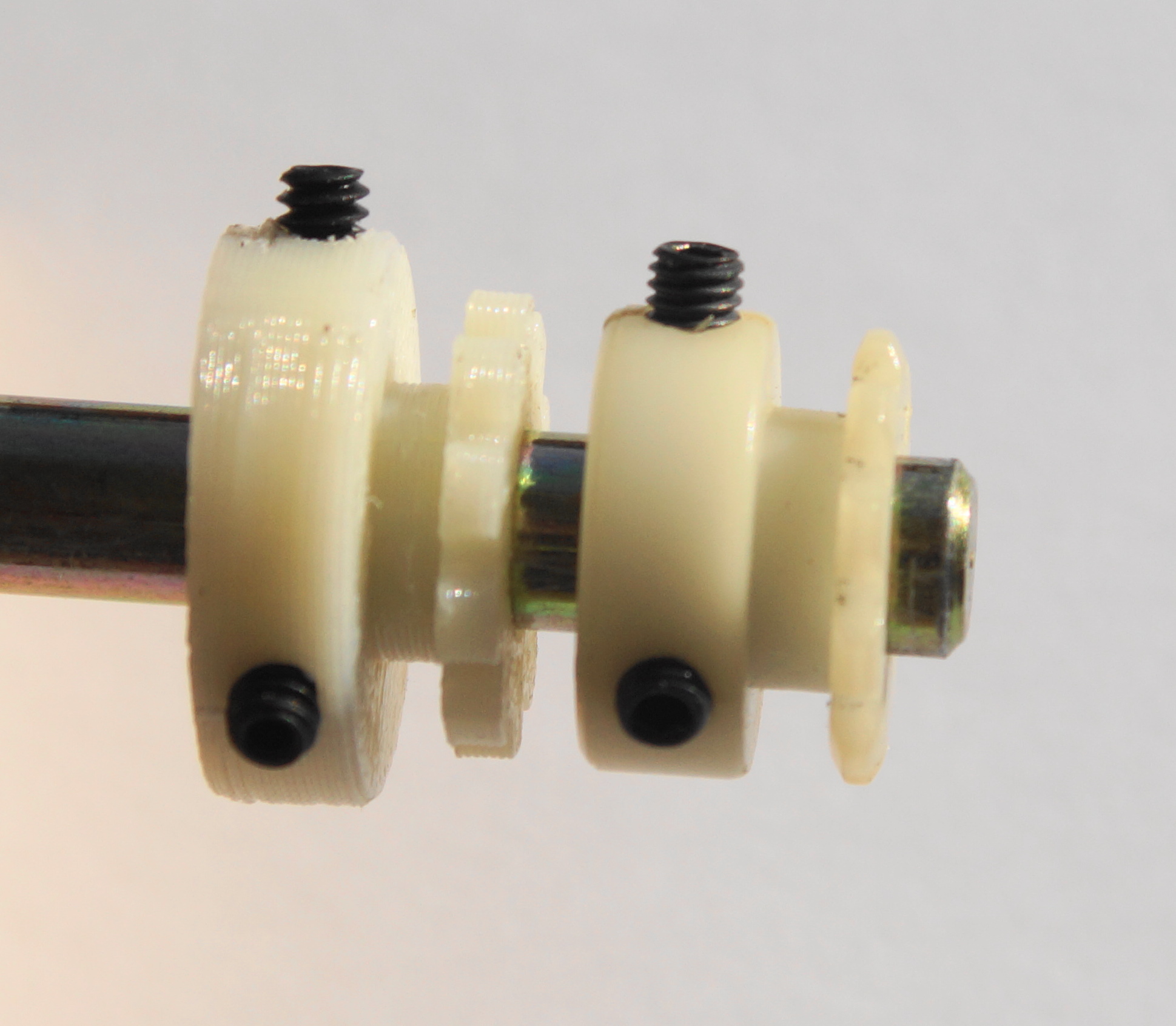

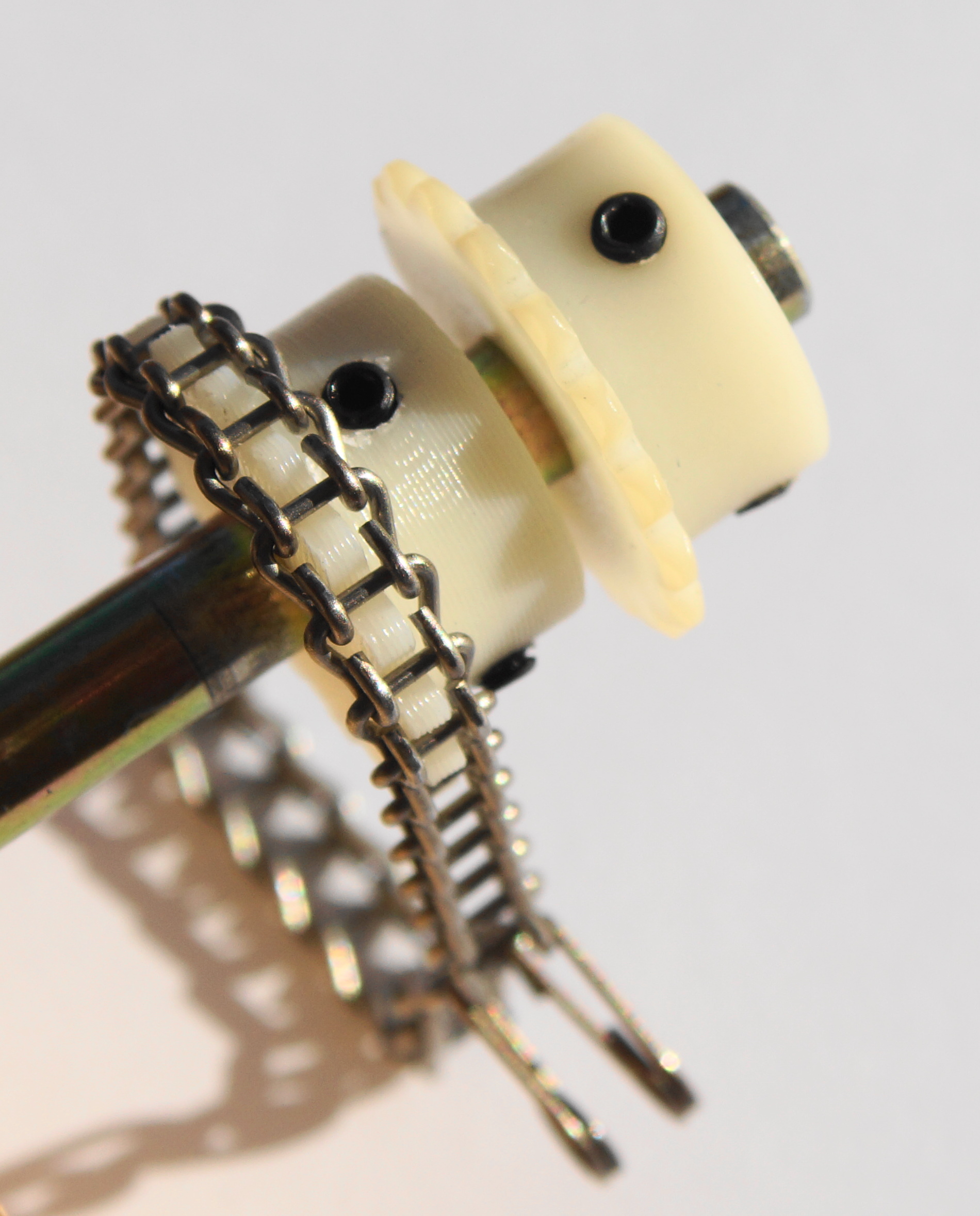

 New Reproduction small sprocket (Left)     Ladder Chain on new large Sprocket    Old Large Sprocket on top

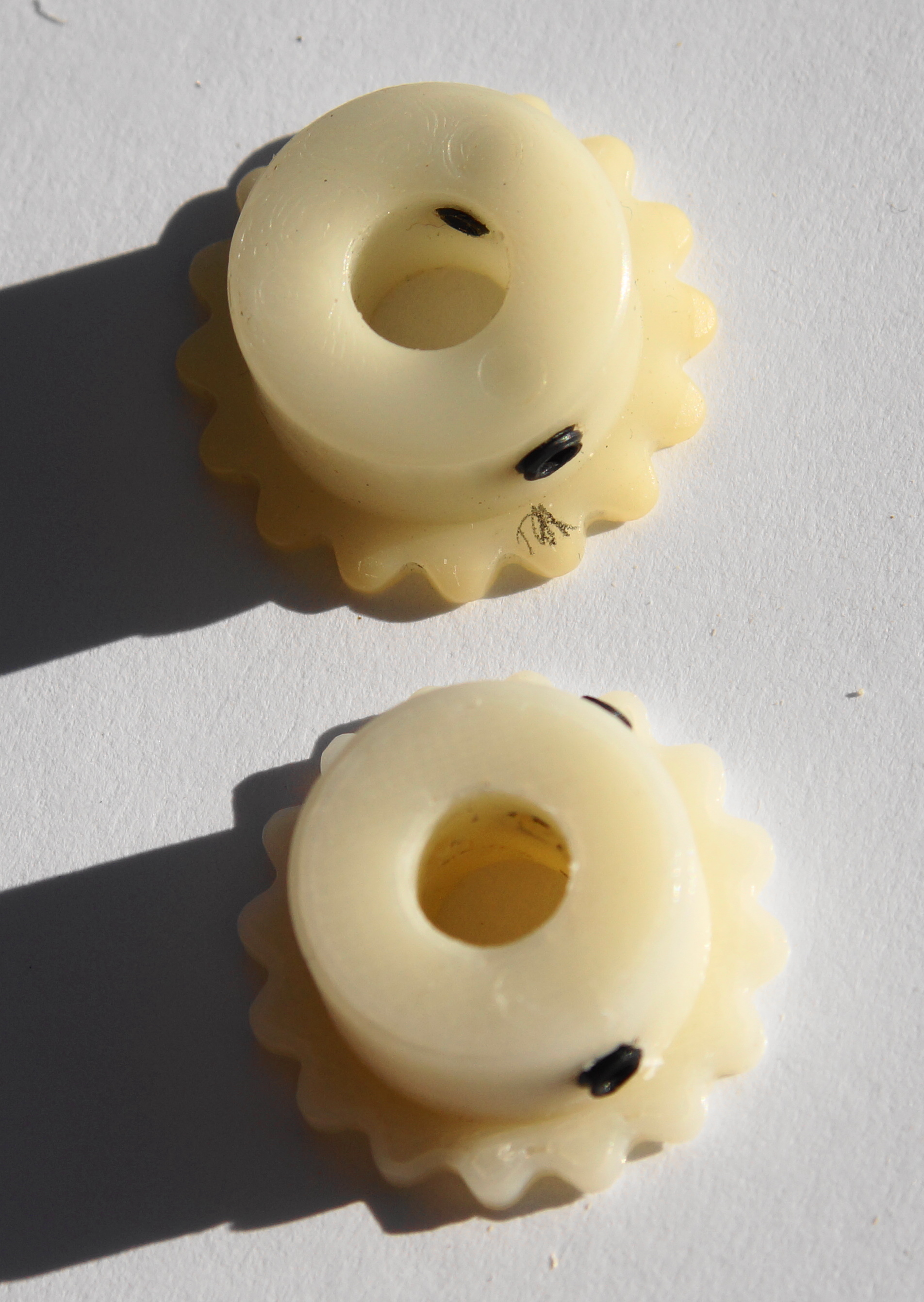

     Note larger stronger hub design                      Original Sprocket (Right)               Reproduction on Bottom

 3D Printing Explained

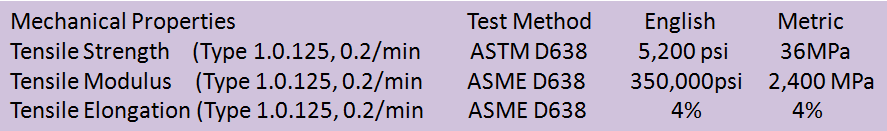

ABS Material Specifications

SPECIFICATIONS

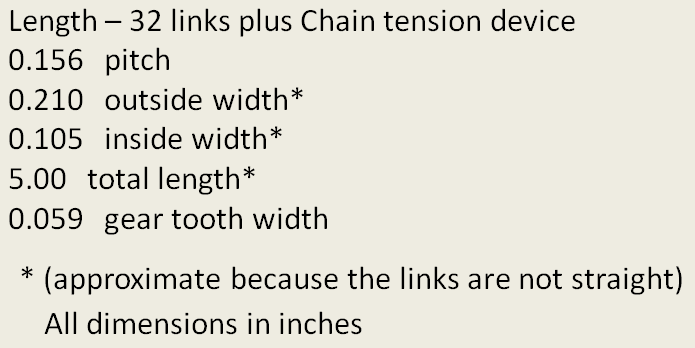

Chain Specifications

chain

Original Sprocket set screw fits a 1.5mm hex wrench, Replacement sprocket set screw fits a 0.050 inch hex wrench.



Official PayPal Seal

PRICING AS FOLLOWS FOR THE SERIES II SPROCKETS

One set of Series II - (3) three small sprockets                                      $19.95

Two sets of Series II - Two sets of (6) small sprockets                          $38.95

One set of Series II - One set of (3) large sprockets                               $19.95

            One Complete set of Series II - (3) three small and (3) large sprockets  $38.95

Pricing includes shipping and handling to U.S. and Canada

When requesting International Shipping select that option on the Add to Cart menu

Order Options
A little about NR6C (click Here)
If you have a special request or special order i.e. for TS-520/820 sprockets email NR6C
